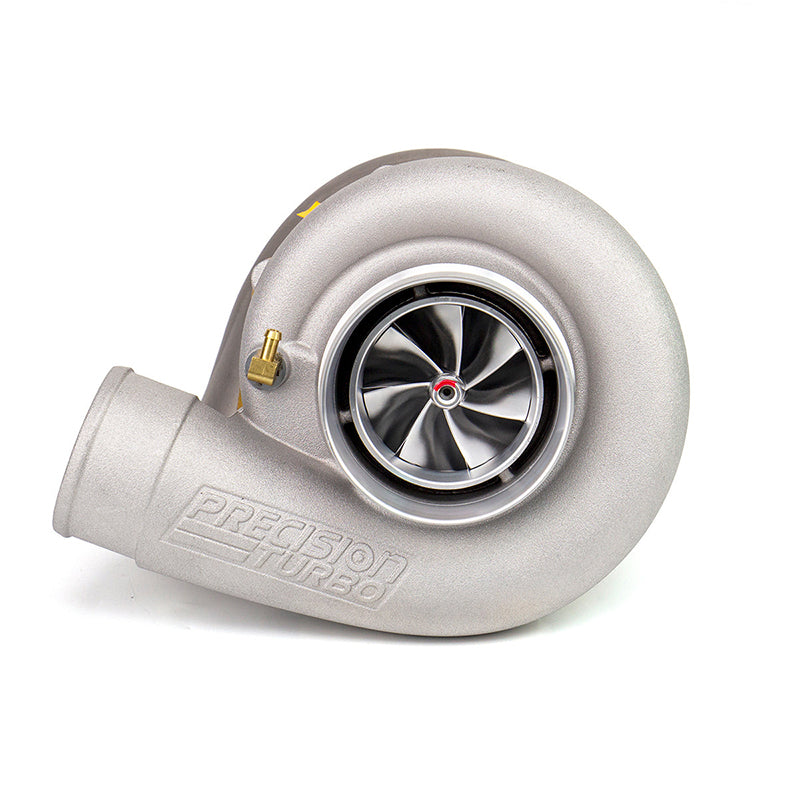

Next Gen PT7275 H Cover Turbocharger

Description

The all-new 7275 H Cover turbocharger features a NEXT GEN, 72mm CEA compressor wheel mated to our 75mm high flow turbine wheel. This unit is based on the H cover ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 72755 is a record setting turbocharger and is a great option for those looking to make upwards of 1,380hp. • NEXT GENERATION RACE TECHNOLOGY • Most powerful 72mm H cover turbocharger in the market. • Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow. • All new compressor cover design with flow enhancements and advanced machining techniques providing 15% more airflow and greater efficiency at higher pressure ratios. • Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity. • High Flow 11 blade turbine wheel design featuring high temperature resistant Alloy. • No price increase over the Gen 2 version. Proven to provide a 15% improvement over the previous generation. Rated to support 1,380 flywheel horsepower. • Specifications: • Compressor Wheel Inducer: 72mm • Compressor Wheel Exducer: 99/101mm • Turbine Wheel Inducer: 82mm • Turbine Wheel Exducer: 75mm • Turbo Max Speed 136,150
